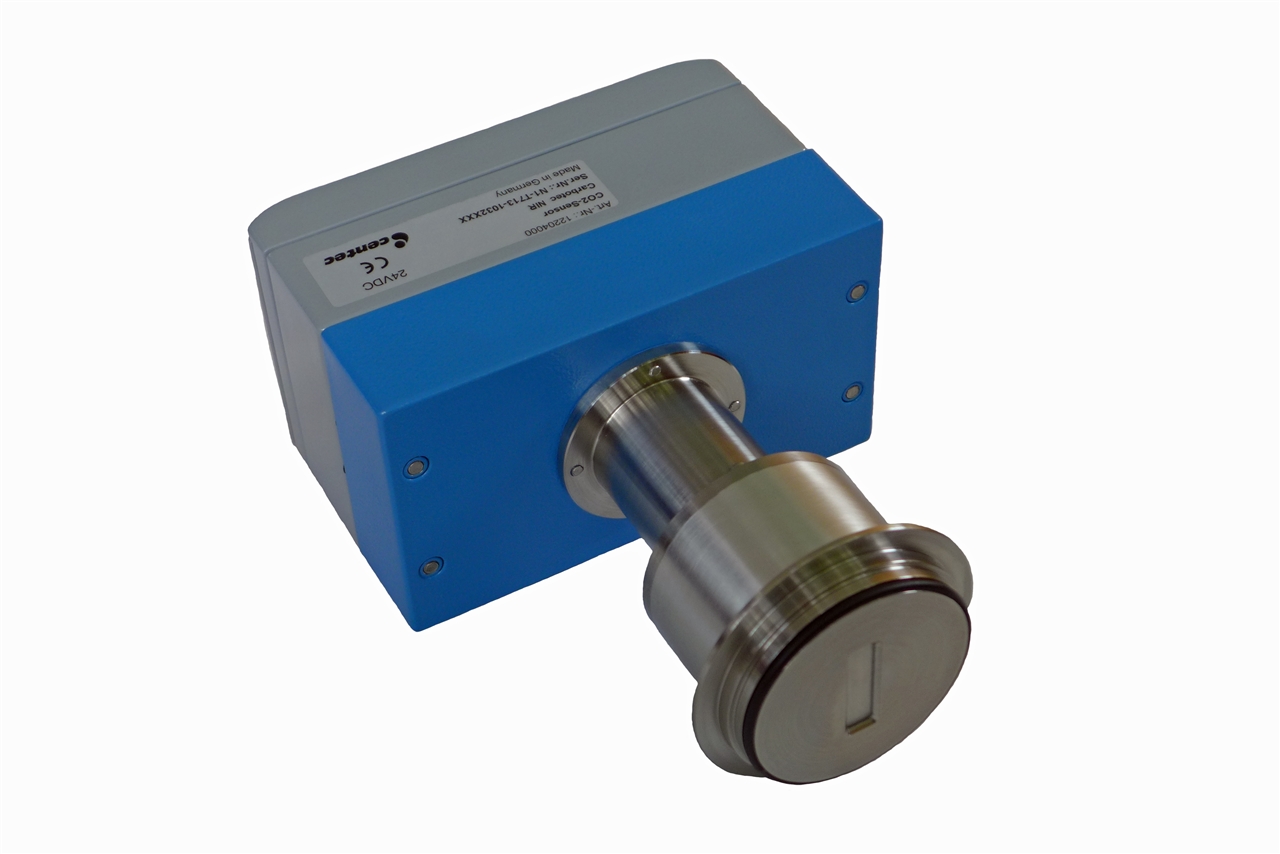

CARBOTEC NIR Online dissolved CO2 analyzer

Principle

CARBOTEC NIR revolutionizes continuous dissolved CO2 measurement in liquids. Designed for applications that require maximum sensitivity and high accuracy, this innovative device is ideally suited for food and beverage manufacturers – especially for breweries and soft drink plants. The new generation of CARBOTEC sensors is based on Attenuated Total Reflection (ATR) technology. While transmitting a sapphire glass crystal, near infrared (NIR) light is reflected several times at the surface. The surface of the crystal is in contact to the carbonated liquid. Since the CO2 molecules in the liquid absorb the specific wavelength of the transmitting light, each reflection decreases the intensity according to the CO2 content. The sensor is of extreme precision and provides “true” carbon dioxide content by quantifying the infrared absorption of the dissolved CO2 only. The measurement result is not influenced by any other gases such as nitrogen in beer. Due to the lack of moving parts, the instrument is virtually maintenance free. Any temperature drifts of the measured signal are automatically compensated by an internal Pt100 sensor.

Characteristic

· Available as Transmitter Version with Local Display

· Highly Precise and Fast Measurement of Dissolved CO2

· ATR Technology to Monitor Only “True” CO2 Content

· Short Response Time and Excellent Long-Term Stability

· Hygienic Execution and Full CIP Capability

· No Moving Parts, Virtually Maintenance Free

· Outstanding Price-Performance-Ratio

Technical Data

CARBOTEC NIR

Measuring Range                                                                        0 - 10 g/l

Accuracy                                                                                      ± 0,1 g/l

Repeatability                                                                              ± 0,02 g/l

Response Time                                                                           ≤ 3 s

Pressure of Operation                                                              Max. 10 bar

Temperature of Operation                                                      - 10 - + 90 °C

Temperature Compensation                                                  Pt100

Material                                                                                        1.4404/AISI 316L, sapphire glass, EPDM (FDA), PTFE (FDA)

Connection                                                                                  Compatible to Varivent? Inline-Housings DN65 - DN150;                                                                                                           others on request

Input                                                                                              6 x digital (24 VDC)                                                                          Output                                                                                          3 x digital (24 VDC) & 2 x analog (4 - 20 mA)

Profibus DP                                                                                 Option

Enclosure Rating                                                                        IP65

Power Supply                                                                             24 VDC
